KRS Series Kondo servo with ROS. We will going to see the code below my introduction about he code below:

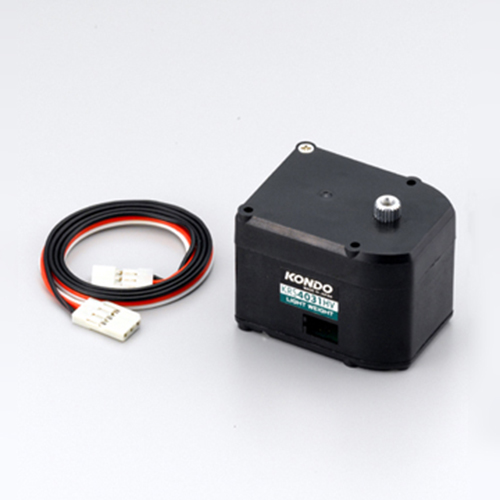

KRS Series Kondo servo with ROS
Table of Contents
KRS Series Kondo servo with ROS
Please see this code:
#!/usr/bin/env python
# license removed for brevity
import rospy
from geometry_msgs.msg import PointStamped
import serial
import time
import struct
import array
import numpy
com = serial.Serial()
com.port=’/dev/ttyUSB0′
com.baudrate=115200
com.bytesize=8
com.parity=serial.PARITY_EVEN
com.stopbits=1
com.timeout=0.1
com.open()
buf=bytearray(3)
temp_=bytearray(2)
target_angle=7500
angle=0.0
a_=270.0/8000.0
b_=-135.0-a_*3500.0
def callback(data):
global target_angle
global angle
angle=data.point.x
target_angle=(int)((angle-b_)/a_)
if(target_angle>11500):
target_angle=11500
elif(target_angle<3500 ) :
target_angle=3500
def data_pub():
pub = rospy.Publisher(‘servo_angle’, PointStamped, queue_size=100)
rospy.Subscriber(“master_angle”, PointStamped, callback)
rospy.init_node(‘servo_node’, anonymous=True)
r = rospy.Rate(100) # 100hz
global target_angle
global angle
data_msg= PointStamped();
while not rospy.is_shutdown():
data_msg.header.stamp=rospy.get_rostime()
buf[0]=0x80
buf[1]=(target_angle>>7)&0x7f
buf[2]=target_angle&0x7f
com.write(buf)
buf_read=com.read(6)
if (len(buf_read)==6):
temp_[0]=ord(buf_read[4])
temp_[1]=ord(buf_read[5])
val=temp_[1]|(temp_[0]<<7)
print “%d” %(val)
data_msg.point.x=angle
data_msg.point.y=(float)(val)*a_+b_
pub.publish(data_msg)
# license removed for brevity
import rospy
from geometry_msgs.msg import PointStamped
import serial
import time
import struct
import array
import numpy
com = serial.Serial()
com.port=’/dev/ttyUSB0′
com.baudrate=115200
com.bytesize=8
com.parity=serial.PARITY_EVEN
com.stopbits=1
com.timeout=0.1
com.open()
buf=bytearray(3)
temp_=bytearray(2)
target_angle=7500
angle=0.0
a_=270.0/8000.0
b_=-135.0-a_*3500.0
def callback(data):
global target_angle
global angle
angle=data.point.x
target_angle=(int)((angle-b_)/a_)
if(target_angle>11500):
target_angle=11500
elif(target_angle<3500 ) :
target_angle=3500
def data_pub():
pub = rospy.Publisher(‘servo_angle’, PointStamped, queue_size=100)
rospy.Subscriber(“master_angle”, PointStamped, callback)
rospy.init_node(‘servo_node’, anonymous=True)
r = rospy.Rate(100) # 100hz
global target_angle
global angle
data_msg= PointStamped();
while not rospy.is_shutdown():
data_msg.header.stamp=rospy.get_rostime()
buf[0]=0x80
buf[1]=(target_angle>>7)&0x7f
buf[2]=target_angle&0x7f
com.write(buf)
buf_read=com.read(6)
if (len(buf_read)==6):
temp_[0]=ord(buf_read[4])
temp_[1]=ord(buf_read[5])
val=temp_[1]|(temp_[0]<<7)
print “%d” %(val)
data_msg.point.x=angle
data_msg.point.y=(float)(val)*a_+b_
pub.publish(data_msg)
r.sleep()
if __name__ == ‘__main__’:
try:
data_pub()
except rospy.ROSInterruptException: pass
